X96 Panel Meter CT

Product Code: X96 – 1E

Application of Smart X96-1E

The Smart X96-1E is a high accuracy multifunction power meter that has been developed with plug in connections for the current transformer and mains voltage supply inputs. This negates the need to traditional wire into the meter and saves 90% on labour as well as eliminating wiring errors. It is one of the most user-friendly multifunction power meters in the market form installation to end client use. It requires mains voltage inputs and external current transformers to operate, it is self-supplied. It comes complete with RS485 Modbus RTU and dual pulsed outputs as standard.

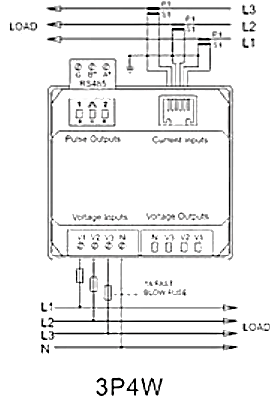

The 3-in-1 current transformer range is for use with the Eastron RJ12 meters which combines three traditional current transformers in one moulding case with a RJ12 connection for simple and easy error free installation.3-in-1 current transformers can be directly installed next to a three-phase moulded case circuit breaker, thus saving installation time where fitting three standard individual current transformers would be required. In addition, the 3-in-1 current transformers, there is also a solid core single pole current transformer available for single phase applications. All current transformers are supplied with a 1m connecting cable, with RJ12 connector termination at each end. It is typical in most installations that the current transformers are mounted on the left-hand side of the breaker so P1 is facing the correct way. However, it is also possible to mount the current transformer on the right-hand side with P2 facing the breaker. This is possible due to the meter having the option to reverse the flow to correct this type of application.

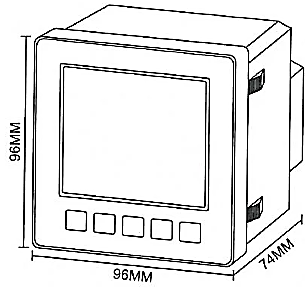

Dimensions: W=96mm x H=96mm x D=70mm.
