SDM72D Three Phase

Product Code: SDM72D

Application of Three Phase Din Rail Energy Meter (4 Module) The Three phase electronic active energy din rail meter is manufactured for the measurement of three phase AC power. It uses advanced microelectronics technology and the SMT production process. This meter completely accords with the relevant technical requirements stipulated in the international standard IEC62053-21.

Features of Three Phase Din Rail Energy Meter (4 Module)

  1. LCD display mode.
  2. High accuracy, sensitivity and performance.
  3. Low power consumption.
  4. Light weight and simple operation.

Technical Parameters of Three Phase Din Rail Energy Meter (4 Module)

Specification SDM72D
Accuracy Class 1
Voltage 240V
Frequency 50Hz
Current 100A
Active 400imp/kwh
Standard IEC62053-21
Display LCD

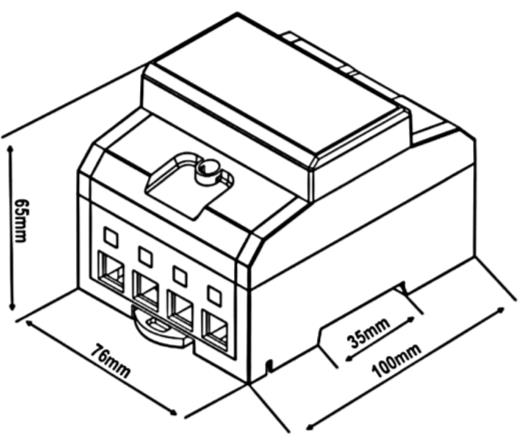

Dimensions: W=76mm x H=100mm x D=65mm.

Terminal Size: 8.5mm diameter.

Image 1 Image 2 Image 3
