Application of SDM630-MCT-E

The SDM630-MCT-E is a new generation modern design power monitored meter that will measure and display power quality parameters. It has been engineered to cover most applications (Single phase and Three phase networks / built in pulsed and RS485 Modbus / import and export kwh).

It is produced to the highest quality and utilises the latest microprocessor and technology. It has a blue backlit display and sixteen different measuring parameters. This includes a negative power reading to indicate reversal of CT installation or connection. With built in pulsed outputs and RS485 Modbus RTU it is fully compatible for integration with BMS and remote monitoring systems.

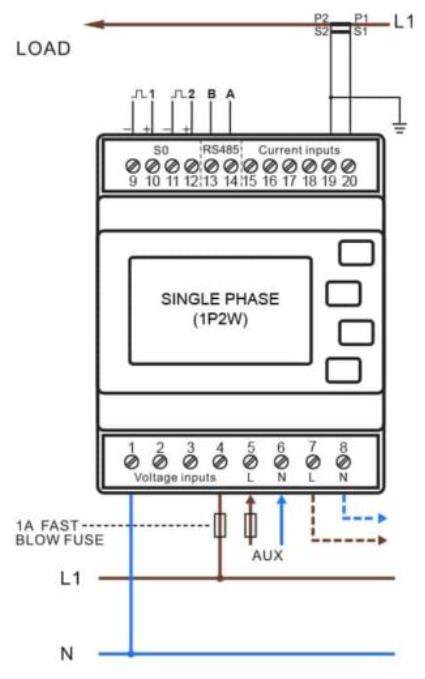

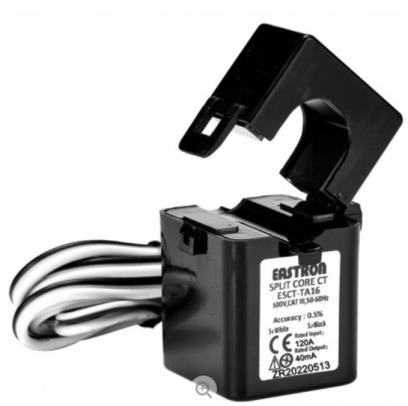

Split core transformers are designed for fast and easy installation and permits non contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.

This method permits for safer easy and portable current measurements. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary circuit.

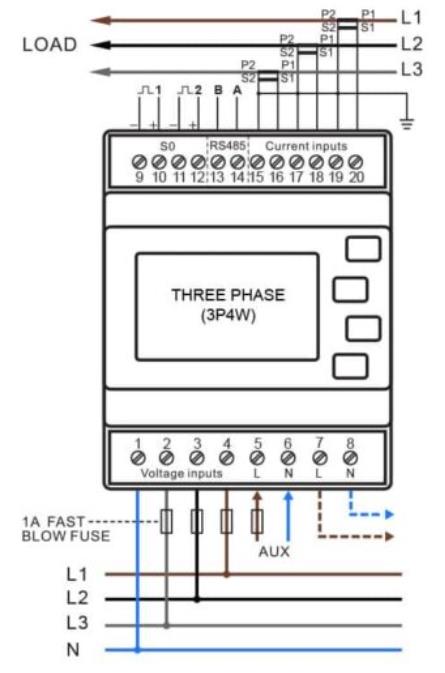

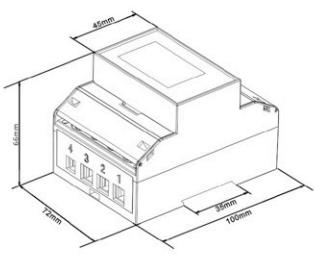

Dimensions: W=72mm x H=100mm x D=66mm.
