Application of 2024 New Single Phase Din Rail Energy Meter (2 module WIFI)

The 2024 New single phase 2 module din rail energy meter offers a wide range of functions to be integrated into electrical installations with significant benefits for the user involving communication options. It is designed for high level performance that is safe and convenient to install. The meter is ideal for remote monitoring of energy consumption.

TUYA Wifi connection (iPhone or Android):

1. Download the free APP from the store and register.
2. Find the device, make sure the meter is installed with power on, and hold set button until the LED is flashing (Bluetooth and WIFI needs to be on).
3. The APP will automatically add the device into the list. This might take one minute.
4. Administer can add multiple devices to the account and label the different meters. i.e.: Room 1 = Basement.
5. The voltage, current and power will show directly on the first page.
6. For more functions browse through app to find.

Technical Parameters of 2024 New Single Phase Din Rail Energy Meter (2 module WIFI)

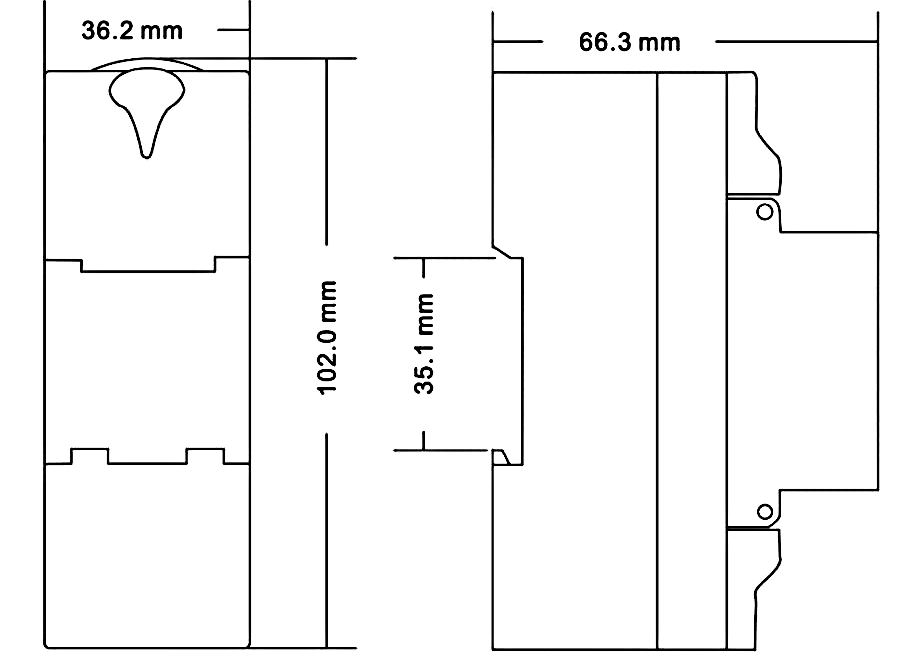

Dimensions: W=36mm x H=102mm x D=66mm.

Terminal Size: 8.5mm diameter.
