Application of Single Phase Din Rail Energy Meter (2 Module)

The single phase electronic active energy din rail meter is manufactured for measure single phase AC active power. The meter adopts special large scale integrated circuit and SMT technology for measuring electric energy ensuring high accuracy and reliability. This meter completely accords with the relevant technical requirements stipulated in the international standard IEC62053-21.

Features of Single Phase Din Rail Energy Meter (2 Module)

1. Displays current, voltage, apparent power, total power consumption, sub power consumption (Press button S for 5 seconds to reset to 0).
2. Small and light weight appearance with excellent reliability.
3. LCD Display.
4. 35mm standard din rail installation.

Technical Parameters of Single Phase Din Rail Energy Meter (2 Module)

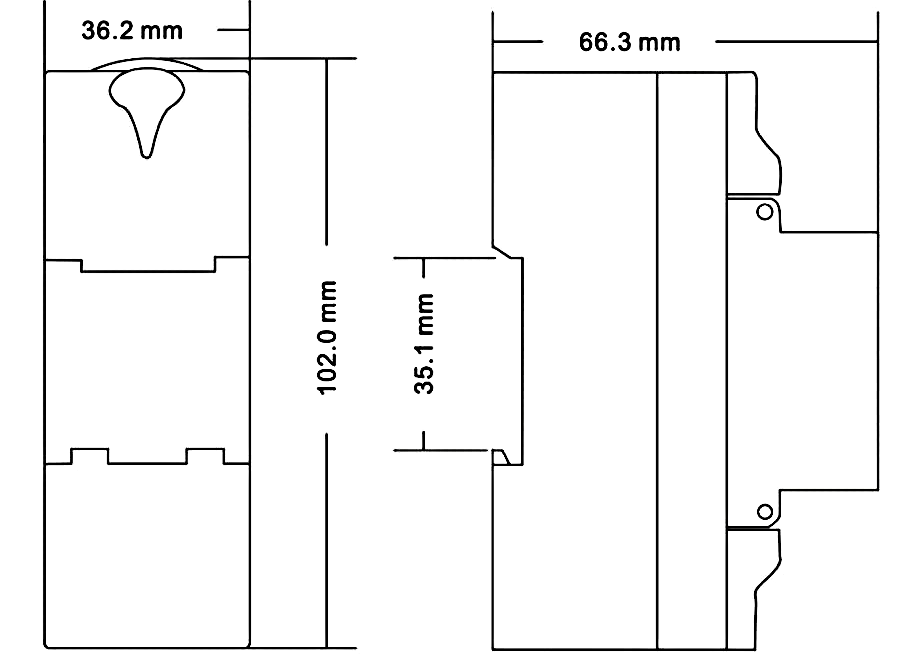

Dimensions: W=36mm x H=102mm x D=66mm.

Terminal Size: 8.5mm diameter
