MT174 Three Phase Dual Rate

Product Code: MT174

Application of Three Phase Four Wire Energy Meter

The Three Phase Four Wire Dual Rate Energy Meter is designed for measurement and registration of active, reactive and apparent energy and demand in three phase four wire networks. The meter is one of the most versatile three phase meters on the market and can be configured to show a number of different electrical parameters to suit a wide variety of application including, billing for consumption and measuring imported and exported energy on renewable installations. Measuring and technical characteristics of the meter completely accords with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC62052-11 and IEC62053-21.

Features of Three Phase Four Wire Energy Meter

  1. Import/export energy.
  2. Multi-tariff c\w internal time switch.
  3. Small size and modern design.
  4. Pulse output.

Technical Parameters of Three Phase Four Wire Electricity and Energy Meter

Specification MT174
Accuracy Class 1
Voltage 240V
Frequency 50Hz
Current 100A
Active 500imp/kwh
Standard IEC62052-11 / IEC62053-21
Display LCD

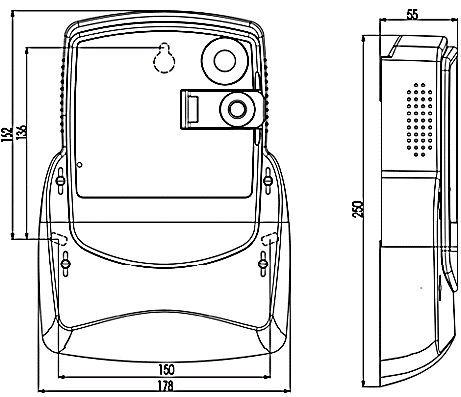

Dimensions: W=178mm x H=250mm x D=55mm

Terminal Size: = 8.5mm diameter

Image 1 Image 2 Image 3
