MP21 Single Phase Card Meter
Product Code: MP21
Application of Single Phase Four Wire Electronic Prepay Card Meter
The MP21 RFID is a pre-payment electricity card meter using RFID technology (Radio-frequency identification). The credit from the pre-loaded pre-payment cards is transferred by holding the card to the front of the meter. The meter is designed to be used for the control of the electricity supply in utility or secondary metered sites such as holiday and landlord accommodation. The meter is programmed by using a master card in conjunction with the red and blue buttons on the meter. This function allows the energy prices to be set.
Technical Parameters of Single Phase Four Wire Electronic Prepay Card Meter
| Specification | MP21 |
| Accuracy Class | 1 |
| Voltage | 240V |
| Frequency | 50Hz |
| Current | 100A |
| Active | 1000imp/kwh |
| Display | LCD |

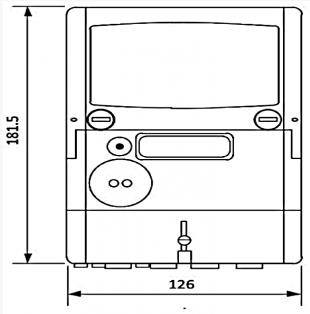

Dimensions: W=126mm x H=182mm x D=58mm
Terminal Size: = 8.6mm diameter
