Application Of 2024 New Single Phase Four Wire Electronic Prepay Card Meter

2024 New Single Phase Four Wire Electronic Prepay Card Meter using microelectronic technology to measure energy, using full shielding and fully sealed structure. The meter uses an advanced single chip processing collection system and preserves data with excellent resistance to electromagnetic interference. The meter is anti-theft and has high accuracy. This meter completely accords with the relevant technical requirements stipulated in the international standard IEC62053-21 and IEC62052-11.

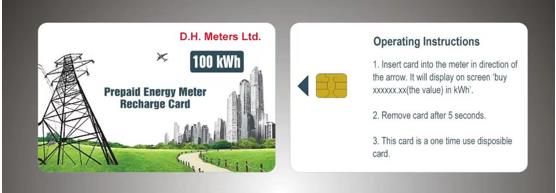

Application And Sale of Prepay Cards

Cards come pre-loaded with units of electricity already on them. Available in 25kwh, 50kwh or 100kwh. For easy usage the card meters do not require to be programmed cancelling out the need for timely site visit involving recalibration. The landlord / seller of cards calculates the price to sell cards to the tenant / buyer by checking his electrical provider bill for the current price per kwh unit. i.e. 40 cents per kwh = selling price to tenant for a 25kwh card is €10, a 50kwh card is €20 and a 100kwh card is €40.

Technical Parameters of 2024 New Single Phase Four Wire Electronic Prepay Card Meter

LCD Screen Display Description

1. Total kwh power consumption.
2. Buy kwh, amount to recharge meter.
3. Odd quantity, amount of kwh left on meter.

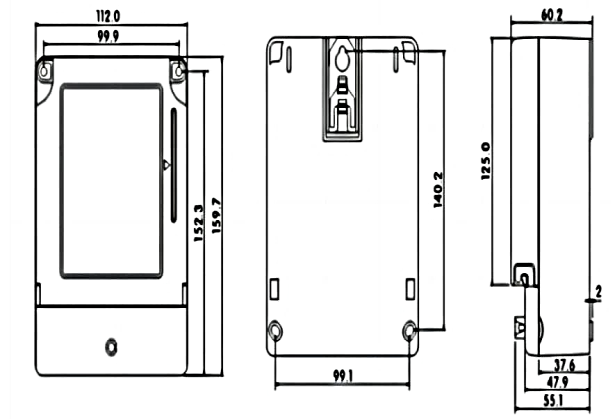

Dimensions: W=112mm x H=153mm x D=55mm.

Terminal Size: = 8.6mm diameter.
