ME162 Single Phase Dual Rate
Product Code: ME162
Application of Single Phase Two Wire Energy Meter
The Single Phase Two Wire Dual Rate Energy Meter with internal timeclock is intended for electric energy measurement and registration in single phase two wire networks in household applications. It boasts kwh import or import/export facility, making it suitable for those exporting their home generated electricity. The meter completely accords with the relevant technical requirements of class 1 single phase active energy meters stipulated in international standard IEC 62052-11 and IEC 62053-21.
Features of Single Phase Two Wire Energy Meter
- Active and Reactive energy measurement.
- Reverse energy detection/export.
- Compact design.
- Optical port for programming and data acquisition.
Technical Parameters of Single Phase Two Wire Electricity and Energy Meter
| Specification | ME162 |
| Accuracy Class | 1 |
| Voltage | 240V |
| Frequency | 50Hz |
| Current | 100A |
| Active | 1000imp/kwh |
| Standard | IEC62053-21 |
| Display | LCD |

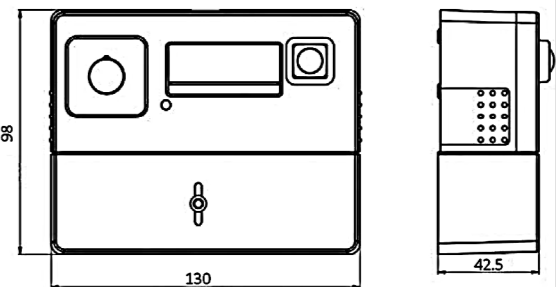

Dimensions: W=130mm x H=98mm x D=43mm
Terminal Size: = 8.5mm diameter
