Application of ET30k Digital Timer

The ET30k is a 30-amp digital timer programmable from one second to 99hours and 59minutes. Standard features include digital display, resettable and non-resettable coin counter and is available in a 1euro coin model or an L2 token model. The time period may be set in minutes and seconds or hours and minutes mode.

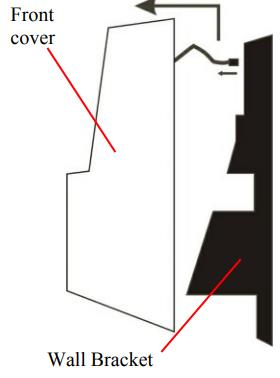

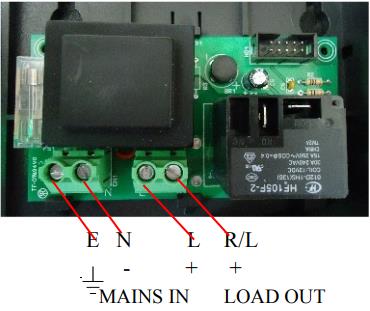

Its case is made from flame retardant, impact resistant ABS plastic. Power consumption of the timer is approximately 22W (230V AC). Loads of up to 7kVA (30A resistive) can be switched directly by the timer, which is typically one 7kW shower or 12 fluorescent lamps.

The versatility of the ET30k is increased by the key operated override switch which allows the output to be turned on permanently. This is useful for match tournaments on tennis courts and similar facilities or for ease of servicing equipment.

Service mode instructions for setting ET30k. Input program code as 80.01 in the P312 display option in menu.

Remove the coin box and press and release button B until the display screen shows "St01".

• St01 - sets the amount of time given by the L2 token coin
• St02 - sets the amount of time given by a 1-euro coin
• St03 - displays the total amount of tokens/money inserted
• St04 - displays the total amount of credit given since last reset

To view or change time settings:

Press and release button B to step to the desired setting number. When the required number is showing on the display press and release button A to display the current setting. Press and release A to select the digit to be changed, then press B to alter that digit by increasing in increments of one. When the required setting is showing on the display put the coin box back in.

Technical Parameters of ET30k Digital Timer

Dimensions: W=183mm x H=270mm x D=93mm.
