CM3 Three Phase
Product Code: CM3
Application of 2024 New Three Phase Four Wire Energy Meter
2024 New Three Phase Four Wire Energy Meter is a front board mounted electronic active energy meter used for measuring electric energy in three phase systems. This meter adopts many advanced technologies of research and development, a specialised chip for power measurement and SMT technique. This meter completely accords with the relevant technical requirements stipulated in the international standard IEC62053-21 for class 1 three phase active energy meters.
Features of 2024 New Three Phase Four Wire Energy Meter
- High accuracy.
- High reliability.
- Lightweight components.
- Convenient easy installation.
Technical Parameters of 2024 New Three Phase Four Wire Energy Meter
| Specification | CM3 |
| Accuracy Class | 1 |
| Voltage | 240V |
| Frequency | 50Hz |
| Current | 100A |
| Active | 400imp/kwh |
| Standard | IEC62053-21 |
| Display | LCD |
LED Light Indication
The meter is equipped with a light for power impulse signal output and three phase indicators.

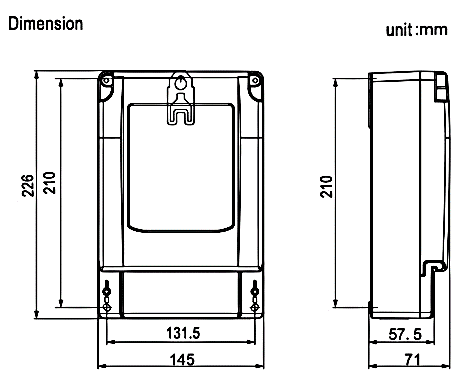

Dimensions: W=145mm x H=226mm x D=71mm
Terminal Size: = 8.6mm diameter
