CM100 Single Phase

Product Code: CM100

Application of Single Phase Four Wire Energy Meter

Single Phase Four Wire Energy Meter is a front board mounted active energy meter used widely in measuring the power consumption for residential, offices and shops. The meter adopts an advanced ultra-low power loss integrated circuit technology and SMT technique. It actively measures active energy consumption from single phase supply. This single phase four wire energy meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC62053-21.

Features of Single Phase Four Wire Energy Meter

  1. High accuracy, reliability, and sensitivity.
  2. Stable error curve.
  3. Lightweight and easy to read screen.
  4. Convenient installation.

Technical Parameters of Single Phase Four Wire Electricity and Energy Meter

Specification CM
Accuracy Class 1
Voltage 240V
Frequency 50Hz
Current 100A
Active 1600imp/kwh
Standard IEC62053- 21
Display LCD

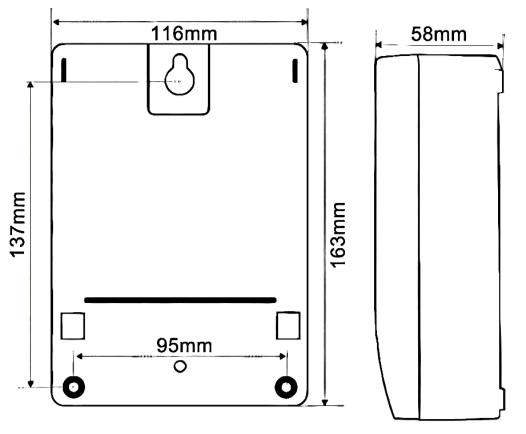

Dimensions: W=116mm x H=163mm x D=58mm.

Terminal Size: = 8.5mm diameter.

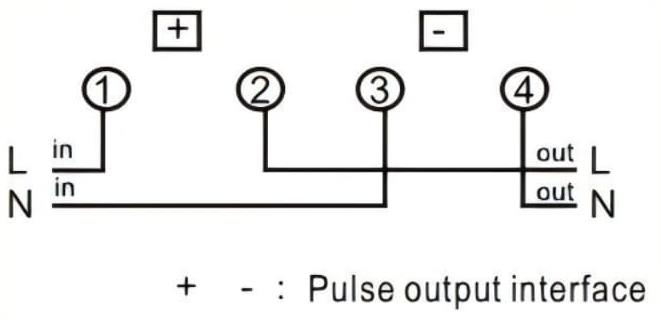

Image 1 Image 2 Image 3
