CM100 Mini Model Single Phase
Product Code: CM100
Type: Mini Model
Application of 2024 New Single Phase Two Wire Energy Meter
2024 New Single Phase Two Wire Energy Meter is a new style single phase two wire active energy meter, adopting microelectronics technique, an imported large scale integrated circuit using an advanced technique of digital and SMT techniques. 2024 New single phase two wire energy meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC62053-21.
Features of 2024 New Single Phase Two Wire Energy Meter
- Bidirectional measurement, Reverse energy calculated into forward.
- Indication: Pulse, power, reverse current.
- Full PC.
- Mini size and easy to install.
Technical Parameters of 2024 New Single Phase Two Wire Electricity and Energy Meter
| Specification | CM100 |
| Accuracy Class | 1 |
| Voltage | 240V |
| Frequency | 50Hz |
| Current | 100A |
| Active | 1600imp/kwh |
| Protection | IP54 |
| Standard | IEC62053-21 |
| Display | LCD |

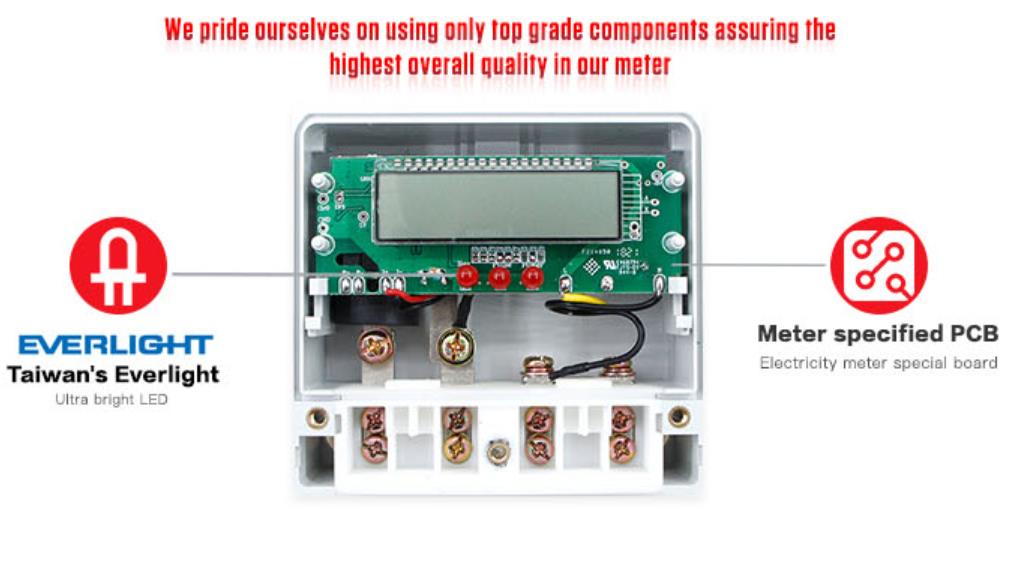

LED Light Indication
- Power supply indication: Power shows meter is working.
- Reverse using indication: Rev light show the meter is reverse using electricity.
- Impulse indication: Pulse light show the meter detects energy impulse.
- Dimensions: W=102mm x H=94mm x D=48mm.

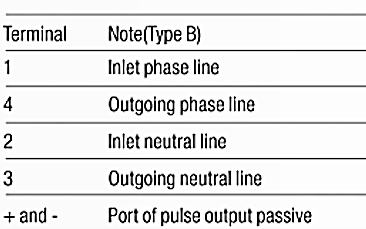

- Terminal Size = 8.5mm diameter.
